Product Overview

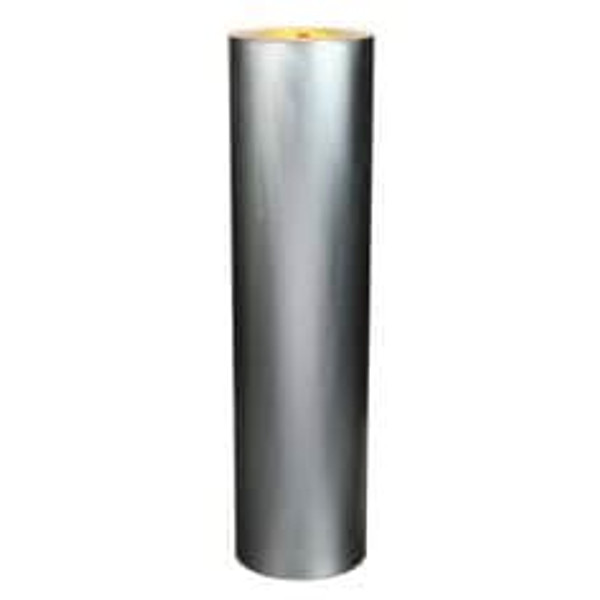

3M Sales UPC: 00051128957677; 3M 5-Digit Part Number: 95767; 3M Previous Stock Number: 70008908850; 3M Consumer UPC: No Data; 3M Inner UPC: No Data; 3M Shipper UPC: 50051128957672; Ship Container Length: 0.219 (Meter); Ship Container Height: 0.660 (Meter); Ship Container Width: 0.219 (Meter); Ship Container Volume: 31654.260 (Cubic centimeter); Ship Container Weight: 10.328 (Kilogram); Shelf Life: 730 Days; Country of Origin: USA; ECCN Number: EAR99; Harmonizing Code: 7607205000; Transport Protective Service: PROTECTIVE SERVICE NOT REQUIRED; NMFC Item: 013750; NMFC Sub: 00; NMFC Class: 070.0; US DOT, 49 CFR Ground: NOT REGULATED; US DOT, 49 CFR Vessel: NOT REGULATED; International Air Transport Association (IATA): NOT REGULATED; International Maritime Organization (IMO): NOT REGULATED. Product Information: 3M™ VentureClad™ Insulation Jacketing System 1577CW is used for cladding and jacketing applications and creates a vapor barrier for HVAC, ductwork, vessels and pipes. This conformable tape is able to conform to a curved or irregular surface. It offers zero permeability, installs without special tools and is puncture and tear resistant - ideal for any indoor or outdoor task. This laminate tape can withstand temperatures as cold as -40 °F/-40 °C and as hot as 300 °F/149 °C. It’s suitable for use on materials like fiberglass, polystyrene and conformable aerogel. It protects insulation against mold, UV, weather, oil and grease, chemicals, impact and mechanical abuse, corrosion under insulation (CUI). This tape qualifies for compliance credit for LEED® v4 and meets UL723 requirements. 3M™ VentureClad™ Insulation Jacketing System 1577CW provides a reliable barrier and protection during jacketing and cladding operations..

Zero Permeability Cladding and Jacketing
The silver aluminum exterior provides an attractive aesthetic for cladding that is visible when finished. This tape meets UL 723 requirements for flame and smoke spread and is puncture and tear resistant. The self-adhesive material cuts and installs easily on-site and without the use of special tools. The backing is flexible to conform to curved and irregular surfaces with ease. 3M™ VentureClad™ Insulation Jacketing Tape 1577CW is a cladding option for 3M™ Interam™ Endothermic Mat E-5A-4 and meets ULI709 Standards - UL Design Number BYBU.XR202. Meets or exceeds most building code requirements. For more information on specific approvals, please refer to the technical data sheet.

Adheres in Cold Temperatures
3M™ VentureClad™ Insulation Jacketing Tape 1577CW features an aggressive pressure sensitive acrylic adhesive that bonds and seals well in cold temperatures. This adhesive adheres immediately on contact to a variety of materials such as fiberglass, faced fiberglass insulation, mineral wool, polystyrene and flexible aerogel. It applies easily at temperatures as cold as -10°F/-23°C. It can operate at a service temperature as low as -94°F/-70°C and as high as 300°F/149°C. Once bonded, this tape will provide good holding power for extended periods with good aging properties and resists lifting and curling over time.

This product is used to protect insulation against UV, ozone, high humidity, salt spray, weather, oil and grease, aggressive chemicals, impact and mechanical abuse, corrosion under insulation (CUI), and moisture vapor intrusion. It works well with many insulation types. Qualifies for compliance credit for LEED®.

Recommended Applications

Vapor barrier for insulation cladding and jacketing operations such as HVAC ductwork and piping
Interior and exterior ductwork (rectangular/round), pipes (straight runs, bends, intersections), and vessels
Weather protection system in extreme environmental conditions
Cladding option for 3M™ Interam™ Endothermic Mat E-5A-4

The Science of Better Adhesion from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our industrial tapes and adhesives, like 3M™ VentureClad™ Insulation Jacketing Tape 1577CW, to help businesses like yours operate faster, better and more efficiently.
