Product Overview

3M Sales UPC: 00048011626024; 3M 5-Digit Part Number: 62602; 3M Previous Stock Number: 62349350603; 3M Consumer UPC: 00048011626024; 3M Inner UPC: No Data; 3M Shipper UPC: 50048011626029; Ship Container Length: 12.928 (Centimeter); Ship Container Height: 17.894 (Centimeter); Ship Container Width: 16.926 (Centimeter); Ship Container Volume: 3915.553 (Cubic centimeter); Ship Container Weight: 823.723 (Gram); Shelf Life: 547 Days; Country of Origin: United Kingdom; ECCN Number: EAR99; Harmonizing Code: 3506105000; Transport Protective Service: PROTECTIVE SERVICE NOT REQUIRED; NMFC Item: 004620; NMFC Sub: 02; NMFC Class: 060.0; US DOT, 49 CFR Ground: NOT RESTRICTED, AS PER 49 CFR 171.4, MARINE POLLUTANT EXCEPTION; US DOT, 49 CFR Vessel: NOT RESTRICTED, AS PER 49 CFR 171.4, MARINE POLLUTANT EXCEPTION; International Air Transport Association (IATA): NOT RESTRICTED, AS PER SPECIAL PROVISION A197, ENVIRONMENTALLY HAZARDOUS SUBSTANCE EXCEPTION; International Maritime Organization (IMO): NOT RESTRICTED, AS PER IMDG CODE 2.10.2.7, MARINE POLLUTANT EXCEPTION. Product Information: 3M™ Scotch-Weld™ Threadlocker TL22 provides vibration, corrosion and shock resistance for fasteners in assembled form. The purple, low removal torque anaerobic adhesive is dispensed as a one-component, medium viscosity product. This long open time anaerobic adhesive cures quickly in the absence of air when parts are assembled..

Prevents Nuts and Bolts from Loosening with Vibration

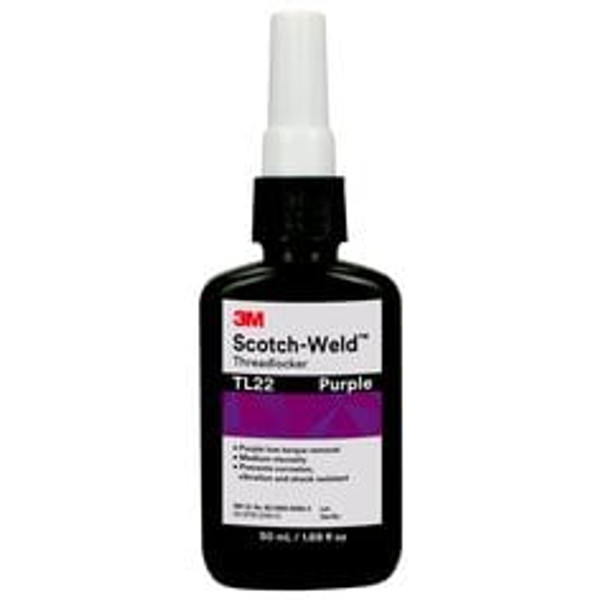

Our 3M™ Scotch-Weld™ Threadlocker TL22 cures and seals threaded assemblies to resist vibration and prevent loosening or leakage of secured fasteners. Applying this adhesive to fasteners before tightening seals out moisture and prevents corrosion. Application is fast and easy with just a targeted squeeze of the bottle. The anaerobic formulation begins to cure quickly into a polymer that seals, secures, and retains. An activator can be used for even faster cure or larger gap sizes. The low strength adhesive loosens when needed with regular hand tools.

Recommended Applications

Threadlocking of screws, bolts and nuts
Applications vary by temperature resistance, removability and oil tolerance

Eliminates the Need for Lock Washers and Other Locking Components
Our 3M™ Scotch-Weld™ Threadlocker TL22 is effective for locking, vibration resistance, sealing, and bonding threaded assemblies. Places where it is useful include machine tool access bolts, hydraulic system bolts, gear box/driveshaft bolts, bearing cover cap screws, countersunk screws and conveyor roller bolts.

Understanding Anaerobic Adhesives
Anaerobic adhesives are uniquely formulated to cure in the absence of oxygen. The term "anaerobic" means "living without air" and when the oxygen is excluded, a chemical chain reaction begins that causes the adhesive to polymerize. Contact with metal speeds the polymerization process and rapidly accelerates the curing process, forming tough cross-linked plastic that provides aggressive adhesion with effective shear strength.

More commonly referred to as threadlockers, pipe sealants, retaining compounds, and gasket makers, these adhesives are often used to enhance the seal, or holding force, in the threads of joined fastener systems such as nut-and-bolt assemblies. A nut-and-bolt assembly may have as little as 15% metal-to-metal contact and even a small amount of anaerobic adhesive readily fills any air voids between the threads and then hardens to a thermoset plastic. These unique adhesives are easy-to-dispense, cure rapidly, and provide effective torque strength while resisting temperature and vibration and sealing out moisture and gasses to protect against corrosion. Anaerobic adhesives can decrease manufacturing costs, enhance equipment reliability, minimize aftermarket breakdown, and reduce warranty claims.
